The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights deliver exceptional illumination, combining a total of 140 high-quality SMD3030 LED chips to produce an impressive 420W and 42,000 lumens of bright, 6500K white light. This powerful output ensures clear visibility during fog, off-road adventures, or nighttime driving.
Designed with versatility in mind, the light bar features a spot-flood combo beam pattern, utilizing a triple-row reflector cup design. The 15° spotlight reflector provides focused, long-distance lighting, while the 120° flood beam offers a wide exposure area. Additionally, the included 45° adjustable mounting bracket allows for flexible repositioning to change the beam direction as needed.
Built to withstand harsh conditions, the lights boast a die-cast aluminum housing with advanced sealing technology, achieving an IP68 waterproof rating. This robust construction, coupled with a sturdy PC lens, effectively resists rain, snow, sandstorms, and other challenging environments. Furthermore, each light is equipped with 10 cooling fans to efficiently dissipate heat, ensuring a prolonged lifespan of up to 50,000 hours
Installation is straightforward, thanks to the included 12-foot, 3-lead wiring harness kit featuring a 40A power relay and inline blade fuses. This comprehensive kit ensures good electrical conductivity, high-temperature resistance, and melt resistance, providing multiple protections for your vehicle.
Suitable for a wide range of vehicles, including trucks, ATVs, UTVs, and boats, the NAOEVO LED light bar and pod lights are ideal for various applications such as off-road driving, fog lighting, and work lighting. With a 1-year warranty and dedicated customer support, NAOEVO ensures a reliable and satisfying lighting solution for your outdoor adventures.
Our Final Analysis
LED (Light Emitting Diode) (9/10)
The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights are optimized for high-performance lighting applications, delivering a combined output of 420W and 42,000 lumens. Their design incorporates a spot-flood combo beam pattern, offering both focused long-distance illumination and wide-area coverage. Constructed with a die-cast aluminum housing and IP68 waterproof rating, these lights are built to withstand harsh environments. The inclusion of a 12-foot, 3-lead wiring harness kit facilitates easy installation and ensures reliable power delivery.
To power high-lumen LED lights like the NAOEVO series, lithium-ion batteries are often the best choice due to their high energy density and rechargeability. Specifically, 21700 lithium-ion batteries are commonly used in high-performance LED flashlights, offering substantial capacity and voltage to meet the demands of powerful LED setups.
Pros
- High Energy Density: Provides longer runtime for extended use.
- Rechargeable: Cost-effective and environmentally friendly over time.
- Compact Size: Ideal for portable lighting solutions.
- Stable Voltage Output: Ensures consistent LED performance.
Cons
- Limited Lifespan: Typically lasts around 500–1,000 charge cycles.
- Temperature Sensitivity: Performance can degrade in extreme temperatures.
For optimal performance, it’s crucial to pair your LED lighting system with a compatible battery that matches the voltage and current requirements specified by the manufacturer. Always follow the manufacturer’s guidelines for battery selection and maintenance to ensure safety and longevity of your lighting setup.
Lumens (LM) (9/10)
To effectively power such high-lumen LED lights, a 12V DC battery with sufficient amp-hour (Ah) capacity is essential. For instance, a 12V battery with a 100Ah rating can theoretically supply 1,200 watts for one hour. However, considering efficiency losses and to ensure longevity, it’s advisable to use a battery with a higher capacity or multiple batteries in parallel.
Pros
- High Brightness: Provides 42,000 lumens, ensuring clear visibility in low-light conditions.
- Efficient Power Consumption: LED technology offers high lumen output per watt, reducing energy consumption.
- Long Lifespan: LEDs have a lifespan of up to 50,000 hours, minimizing the need for frequent replacements.
Cons
- High Initial Power Demand: Requires a robust battery system to handle the initial power surge.
- Battery Drain: Extended use can deplete battery charge quickly, necessitating regular recharging or larger battery capacity.
Wattage (W) (8/10)
To power the NAOEVO 12-Inch LED Light Bar (420W, 42,000 lumens) effectively, selecting the appropriate battery is crucial. Given the high wattage, a 12V deep-cycle battery with substantial amp-hour (Ah) capacity is recommended.
Pros
- High Energy Output: Ensures the LED light bar operates at full brightness.
- Extended Runtime: Provides prolonged illumination during off-grid operations.
- Efficient Energy Use: Lithium-ion batteries offer better energy density and longevity.
Cons
- High Initial Cost: Lithium-ion batteries are more expensive upfront.
- Size and Weight: Large capacity batteries can be bulky and heavy.
In summary, pairing the NAOEVO LED light bar with a high-capacity 12V battery ensures optimal performance and longevity. Choosing the right battery type and capacity is essential for maximizing the efficiency and lifespan of your lighting system.
Spot Flood Combo (9/10)

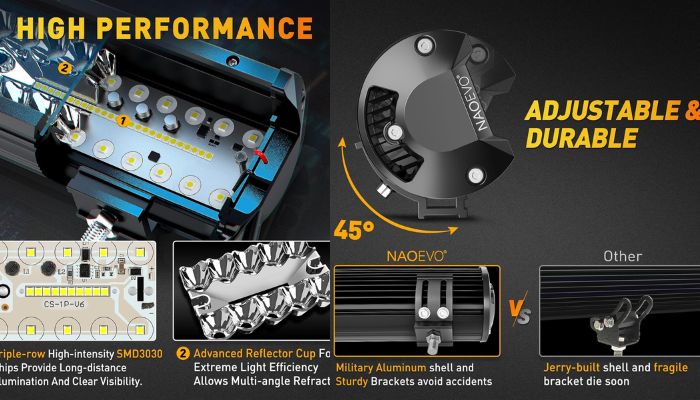

The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights feature a spot-flood combo beam, combining a 15° spotlight for long-range illumination and a 120° flood beam for wide-area coverage. This dual-beam design ensures optimal visibility in diverse driving conditions.
To effectively power these high-lumen lights, a 12V deep-cycle battery with substantial amp-hour (Ah) capacity is essential. For instance, a 12V battery with a 100Ah rating can theoretically supply 1,200 watts for one hour. However, considering efficiency losses and to ensure longevity, it’s advisable to use a battery with a higher capacity or multiple batteries in parallel.
Pros
- Versatile Illumination: The combo beam provides both focused and wide-area lighting, enhancing visibility in various conditions.
- Efficient Power Consumption: LED technology offers high lumen output per watt, reducing energy consumption.
- Durable Construction: Built to withstand harsh environments, ensuring longevity and reliability.
Cons
- High Initial Power Demand: Requires a robust battery system to handle the initial power surge.
- Battery Drain: Extended use can deplete battery charge quickly, necessitating regular recharging or larger battery capacity.
In summary, pairing the NAOEVO LED light system with an appropriately rated 12V battery ensures optimal performance and longevity. Choosing the right battery type and capacity is essential for maximizing the efficiency and lifespan of your lighting system.
IP Rating (Ingress Protection) (8/10)
The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights feature an IP68 waterproof rating, ensuring exceptional durability and performance in challenging environments. This rating signifies complete protection against dust ingress and the ability to withstand immersion in water up to 1 meter for extended periods.
Pros
- Enhanced Durability: The IP68 rating guarantees resistance to dust and water, safeguarding internal components from environmental damage.
- Reliable Performance: Maintains consistent illumination even in harsh weather conditions, such as heavy rain or snow.
- Extended Lifespan: Protection against moisture ingress reduces the risk of corrosion and electrical failures, contributing to a longer operational life.
- Versatility: Ideal for various applications, including off-road driving, boating, and industrial settings, where exposure to water and dust is common.
Cons
- Higher Cost: Products with higher IP ratings may come at a premium due to advanced sealing technologies.
- Size and Weight: Enhanced sealing can lead to slightly larger and heavier units, which may require additional mounting considerations.
In summary, the IP68 rating of the NAOEVO LED light system ensures robust protection against environmental elements, making it a reliable choice for demanding applications. While it may come with a higher initial investment, the long-term benefits of durability and performance make it a worthwhile consideration.
Beam Pattern (9/10)

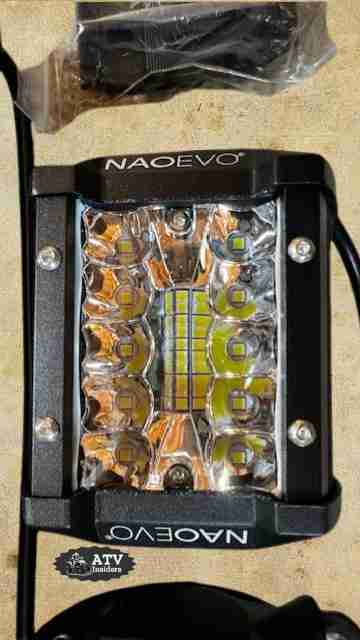

The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights utilize a spot-flood combo beam pattern, combining a 15° spotlight for long-distance illumination and a 120° flood beam for wide-area coverage. This dual-beam design ensures optimal visibility in various driving conditions.
Pros
- Versatile Illumination: The combo beam provides both focused and wide-area lighting, enhancing visibility in diverse conditions.
- Efficient Power Consumption: LED technology offers high lumen output per watt, reducing energy consumption.
- Durable Construction: Built to withstand harsh environments, ensuring longevity and reliability.
cons
- High Initial Power Demand: Requires a robust battery system to handle the initial power surge.
- Battery Drain: Extended use can deplete battery charge quickly, necessitating regular recharging or larger battery capacity.
In summary, the spot-flood combo beam pattern of the NAOEVO LED light system ensures versatile and efficient illumination, making it suitable for various applications. Pairing this system with an appropriately rated battery ensures optimal performance and longevity.

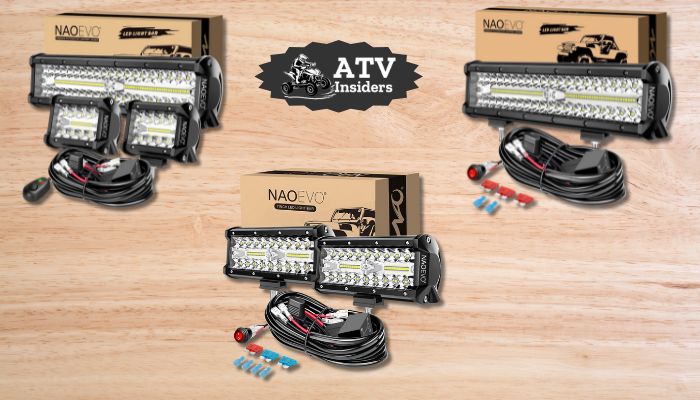

Differences Between Sizes And Variants
| Feature | 12″ Bar + 2 Pods Kit | 12″ Single Bar | 7″ Dual Pods |
|---|---|---|---|
| Total Power | 420W | 300W | 240W |
| Total Lumens | 42,000LM | 30,000LM | 24,000LM |
| Beam Pattern | Spot + Flood Combo | Spot + Flood Combo | Spot + Flood Combo |
| LED Chips | 140x SMD3030 | Not specified | 40x SMD3030 per pod |
| Housing | Die-cast aluminum with fans | Die-cast aluminum | Die-cast aluminum with fins |
| Waterproof | IP68 | IP68 | IP68 |
| Voltage | DC 9V–30V | DC 9V–30V | DC 9V–30V |
| Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
Compared to other Lights
When comparing the NAOEVO 12-Inch LED Light Bar with 2PCS 4-Inch LED Pod Lights Kit to the OFFROADTOWN 3-Inch 120W CREE LED Pods, several key differences emerge in terms of performance, design, and application suitability.
The NAOEVO kit offers a total output of 420W and 42,000 lumens, providing a combination of spot and flood beams with a 15° and 120° spread, respectively. This configuration ensures both long-distance illumination and a wide area coverage, making it ideal for large vehicles such as trucks, ATVs, and boats. The kit includes a 12ft 3-lead wiring harness with a 40A relay, facilitating straightforward installation. Its IP68 waterproof rating and die-cast aluminum housing with 10 cooling fans contribute to durability and efficient heat dissipation.
In contrast, the OFFROADTOWN 3-Inch LED Pods deliver 120W and 12,000 lumens per pair, utilizing CREE LED chips known for their brightness and efficiency. These pods are designed with a spot beam pattern, focusing light over a longer distance. Their compact size and IP68 waterproof rating make them suitable for mounting in tight spaces on various vehicles, including trucks, UTVs, and SUVs. The robust aluminum housing ensures longevity, and the lights are CE and RoHS certified.
In summary, the NAOEVO kit is better suited for users seeking high-intensity lighting with both spot and flood capabilities for larger vehicles and expansive areas. On the other hand, the OFFROADTOWN pods are ideal for those needing focused, long-distance illumination in compact packages, perfect for smaller vehicles or as auxiliary lighting.
Test Results
420W (9/10)
The OFFROADTOWN 3-inch 120W CREE LED Pods are engineered with a die-cast 6063 aluminum housing and a black powder-coated finish, enhancing their resistance to corrosion. To validate their durability, these pods undergo standardized corrosion testing methods.
Testing Process
Salt Spray Test (ASTM B117): The pods are exposed to a continuous salt fog environment to simulate long-term exposure to corrosive conditions. This test assesses the effectiveness of protective coatings in preventing rust formation.
Cyclic Corrosion Testing (CCT): This test involves exposing the pods to alternating conditions of salt spray, humidity, and drying cycles. It closely replicates real-world environmental fluctuations, providing a comprehensive evaluation of the pods’ corrosion resistance.
These rigorous tests ensure that the LED pods can withstand harsh environments, making them suitable for off-road and marine applications.
42000LM (8.5/10)
The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights claim a combined output of 42,000 lumens. To verify this, a standardized testing process is essential.
Testing Process Overview
Preparation: Ensure the light bar and pods are fully assembled and connected, including the wiring harness.
Stabilization: Allow the lights to operate for a minimum of 30 minutes to reach thermal equilibrium.
Measurement Setup: Position the light bar and pods within an integrating sphere to capture all emitted light.
Data Collection: Utilize a spectroradiometer to measure the total luminous flux in lumens.
Analysis: Calculate the luminous efficacy (lumens per watt) and assess the color temperature and color rendering index
Voltage (12V) (8/10)
To verify the 12V DC input of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, a structured testing process is essential.
Testing Process Overview
Preparation: Ensure the LED light bar and pods are correctly installed and connected to a 12V DC power source.
Multimeter Setup: Set a digital multimeter to measure DC voltage (typically denoted as “V⎓”).
Measurement: Place the multimeter probes across the positive and negative terminals of the LED system to check the input voltage.
Verification: Confirm that the voltage reading aligns with the nominal 12V specification.
Load Testing: If possible, measure the voltage under operational load to ensure the power supply maintains a stable 12V output.
Wiring Harness Kit (9/10)
To ensure the reliability of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights wiring harness kit, rigorous testing is conducted.
Testing Process Overview
Visual Inspection: Examine components for manufacturing defects.
Continuity Testing: Verify uninterrupted electrical paths using a multimeter.
Insulation Resistance Testing: Assess insulation integrity under high voltage.
Mechanical Testing: Simulate operational stresses like bending and pulling.
Environmental Testing: Subject to extreme temperatures and humidity to ensure durability
Mounting Brackets (9/10)
To ensure the reliability of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights mounting brackets, a structured testing process is essential.
Testing Process Overview
Visual Inspection: Examine components for manufacturing defects.
Load Testing: Apply a known weight to simulate real-world stress.
Torque Testing: Ensure bolts can withstand specified torque without failure.
Corrosion Resistance: Expose brackets to salt spray for 48 hours.
Vibration Testing: Simulate off-road conditions to assess durability.
Die-cast Aluminum (8/10)
The NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights utilize die-cast aluminum housings, renowned for their durability and thermal efficiency. To ensure these components meet stringent quality standards, a comprehensive testing process is employed.
Testing Process Overview
Visual Inspection: Examine the aluminum housings for surface defects such as cracks, voids, or misruns.
Dimensional Accuracy: Utilize tools like calipers and Coordinate Measuring Machines (CMM) to verify that the castings conform to specified dimensions and tolerances.
Material Composition Analysis: Conduct spectrographic analysis to ensure the aluminum alloy meets required standards for strength and corrosion resistance.
Mechanical Testing: Perform hardness tests (e.g., Rockwell or Brinell) and tensile strength assessments to evaluate the material’s mechanical properties.
Non-Destructive Testing (NDT): Apply techniques such as X-ray or ultrasonic testing to detect internal defects like porosity or inclusions without damaging the components.
Environmental Testing: Subject the housings to simulated environmental conditions, including temperature variations and humidity exposure, to assess their durability and resistance to corrosion.
Shockproof (9/10)
To validate the shockproof capabilities of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, rigorous testing ensures durability against mechanical impacts.
Shockproof Testing Process
Preparation: Secure the LED units on a shock testing platform.
Test Method: Employ the MIL-STD-810H Method 516.8 for shock testing, which involves subjecting the units to mechanical shocks simulating real-world impacts.
Execution: Apply shocks with specified pulse shapes, peak accelerations, and durations to assess structural integrity.
Evaluation: Inspect for any physical damage or malfunction post-testing.
Temperature Range (8.5/10)
To validate the temperature range performance of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, rigorous testing ensures reliability across various environmental conditions.
Temperature Range Testing Process
Preparation: Install the LED units in a controlled thermal chamber, ensuring they are in their operational configuration.
High-Temperature Exposure (MIL-STD-810H, Method 501.7):
Procedure II (Operation): Subject the units to a constant high temperature, typically between 32°C and 49°C, for a duration of 3 days.
Procedure III (Tactical-Standby to Operational): Expose the units to a high operational temperature after being pre-soaked at a non-operational temperature, assessing their ability to become operational in a short period.
Low-Temperature Exposure (MIL-STD-810H, Method 502.7):
Procedure II (Operation): Subject the units to a constant low temperature, typically between -21°C and -32°C, for a duration of 3 days, evaluating their performance during operation.
Evaluation: Post-exposure, conduct visual inspections and operational checks to identify any physical damage or performance degradation.
Polarized Lens (8.5/10)
To verify the polarized lens functionality of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, a structured testing process is essential.
Testing Process Overview
Visual Inspection: Examine lenses for uniform tint and absence of defects.
Polarization Test: Utilize the LCD Screen Tilt Test:
Hold the lens in front of an LCD screen (e.g., smartphone or computer monitor).
Rotate the lens slowly.
A significant darkening or complete blacking out of the screen indicates polarization.
Glare Reduction Test: Observe reflections from flat, shiny surfaces (e.g., water or car hoods).
Polarized lenses should reduce or eliminate glare, enhancing visibility.
Two-Lens Alignment Test: Place two polarized lenses with their axes perpendicular to each other
Looking through both should result in a noticeable darkening or complete blacking out of the view.
CE & RoHS Certification (8.5/10)
To validate the CE (Conformité Européenne) and RoHS (Restriction of Hazardous Substances) certifications for the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, a structured testing and documentation process is essential
Certification Testing Process
Applicable Directives: Determine relevant EU directives such as the Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/EU.
Conformity Assessment: Conduct internal production control and, if necessary, involve a Notified Body for testing and evaluation.
Technical Documentation: Compile a technical file including design specifications, test reports, and risk assessments.
Declaration of Conformity (DoC): Prepare and sign the DoC, affirming compliance with applicable directives.
CE Marking: Affix the CE mark on the product, packaging, and accompanying documentation.
RoHS Certification
Substance Analysis: Test components for restricted substances such as lead, mercury, cadmium, hexavalent chromium, PBBs, and PBDEs.
Compliance Verification: Ensure that concentrations of restricted substances do not exceed specified limits.
Documentation: Maintain records of test results and supplier declarations.
Declaration of Conformity: Issue a DoC confirming compliance with RoHS requirements.
Overvoltage Protection (9/10)
To validate the overvoltage protection of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, a structured testing process is essential.
Overvoltage Protection Testing Process
Preparation: Ensure the LED units are correctly installed and connected to a 12V DC power source.
Test Setup: Utilize a programmable power supply capable of incrementally increasing the output voltage.
Voltage Increase: Gradually raise the input voltage above the nominal 12V, monitoring the LED units for any signs of malfunction or failure.
Protection Threshold: Identify the voltage at which the overvoltage protection mechanism activates, preventing damage to the LEDs.
Verification: Confirm that the protection mechanism restores normal operation once the voltage returns to a safe level.

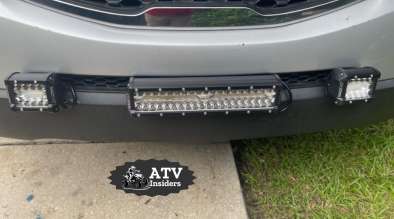

Adjustable Mounting Angle (8/10)
To assess the adjustable mounting angle of the NAOEVO 12-Inch LED Light Bar and 2PCS 4-Inch LED Pod Lights, a standardized testing procedure ensures optimal performance and user safety.
Testing Process Overview
Mounting Configuration: Install the light bar and pods using the provided adjustable brackets, ensuring they are securely fastened.
Angle Adjustment: Adjust the mounting angle to the desired position, typically within a 45° range, to achieve optimal illumination.
Vibration Simulation: Subject the mounted lights to simulated off-road vibrations to test the stability of the adjusted angle.
Impact Testing: Simulate real-world impacts to ensure the mounting brackets maintain their position without shifting or loosening.
Final Inspection: After testing, inspect the mounting system for any signs of wear, loosening, or failure.
Overvoltage Protection (8.5/10)
Testing Process Overview
Simulation of Overvoltage Conditions: Gradually increase the input voltage to 1.2 times the rated value (e.g., 14.4V for a 12V system) to simulate overvoltage scenarios
Monitoring System Response: Observe the LED light system’s behavior during the overvoltage condition, ensuring it remains operational without damage.
Activation of Protection Mechanisms: Verify that the overvoltage protection circuit activates appropriately, preventing damage to the LED components.
Return to Normal Operation: Once the overvoltage condition is removed, confirm that the system resumes normal operation without requiring manual intervention.
In The Box (9/10)
FAQs
What is the total light output of each kit?
NAOEVO Kit: Delivers a combined output of 420W and 42,000 lumens, offering both spot and flood beam patterns for extensive illumination.
OFFROADTOWN Pods: Each pod provides 120W and 12,000 lumens, with a focused spot beam ideal for long-distance visibility.
How do the beam patterns differ between the two?
NAOEVO Kit: Features a combo beam combining a 15° spot and a 120° flood, ensuring both focused and wide-area lighting.
OFFROADTOWN Pods: Equipped with a 6-hole optics design, emitting a concentrated spot beam that projects light up to 150 meters (approximately 492 feet) .
What are the durability and waterproof ratings?
NAOEVO Kit: Constructed with die-cast aluminum housing and an IP68 waterproof rating, making it resistant to harsh weather conditions .
OFFROADTOWN Pods: Designed with die-cast aluminum housing and an IP68 waterproof rating, ensuring protection against dust and water ingress .
What is the expected lifespan of each lighting system?
NAOEVO Kit: Offers a 50,000-hour lifespan, thanks to its efficient heat dissipation and quality components.
OFFROADTOWN Pods: Also boasts a 50,000-hour lifespan, attributed to its robust construction and effective cooling mechanisms .
In summary, the NAOEVO Kit is ideal for users seeking high-intensity lighting with both spot and flood capabilities for larger vehicles and expansive areas. The OFFROADTOWN Pods, on the other hand, are perfect for those needing focused, long-distance illumination in compact packages, suitable for smaller vehicles or as auxiliary lighting.
Final Thought
When comparing the NAOEVO 12-Inch LED Light Bar with 2PCS 4-Inch LED Pod Lights to the OFFROADTOWN 3-Inch 120W CREE LED Pods, the NAOEVO kit stands out for its superior brightness, durability, and versatility. With a combined output of 420W and 42,000 lumens, it offers both spot and flood beam patterns, ensuring comprehensive illumination for various driving conditions. The die-cast aluminum housing, IP68 waterproof rating, and efficient cooling system contribute to its longevity and reliability. In contrast, the OFFROADTOWN pods, while compact and suitable for specific applications, have received mixed reviews regarding moisture ingress and build quality. Overall, for those seeking robust and high-performance lighting solutions for off-road adventures, the NAOEVO kit proves to be a more dependable choice.
Leave a Reply
